Using our die cut shape, pocket and sleeve templates with Canva – Peterkin Help Centre

Canva updates its platform regularly so instructions may change. We always try to keep our guidelines up-to-date. For specialist program info, visit Canva's help section.

It's important to use our templates to make sure your design is in the right position.

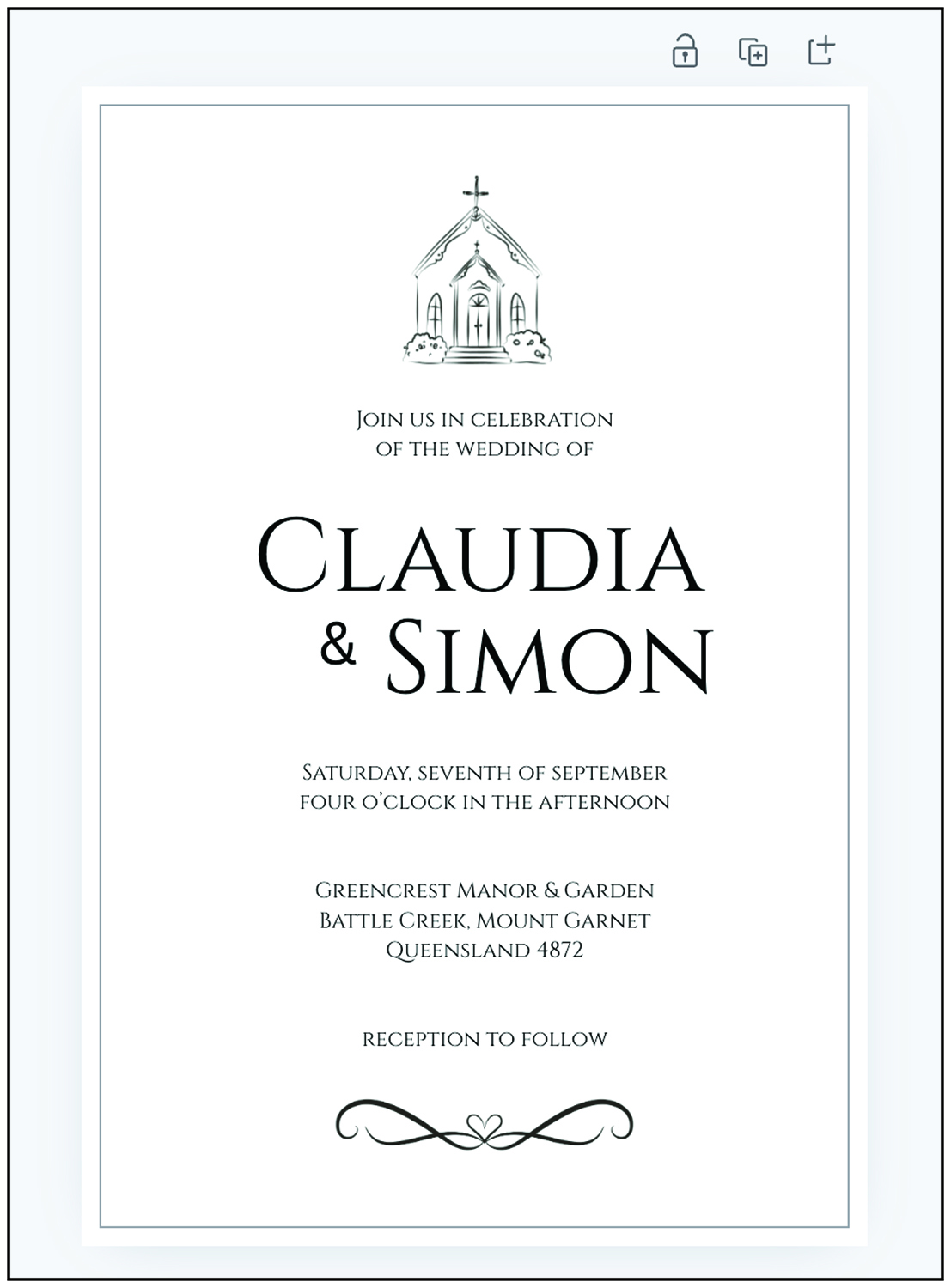

When you're happy with your design DELETE THE TEMPLATE and share as a Print PDF.

You can use these instructions as a guide for using any of our templates in Canva including Signage.

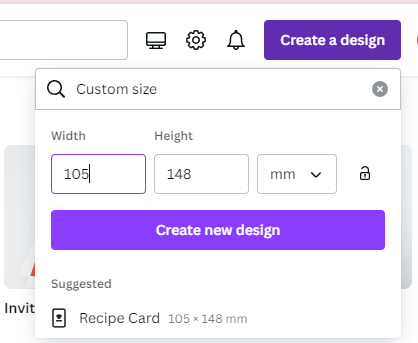

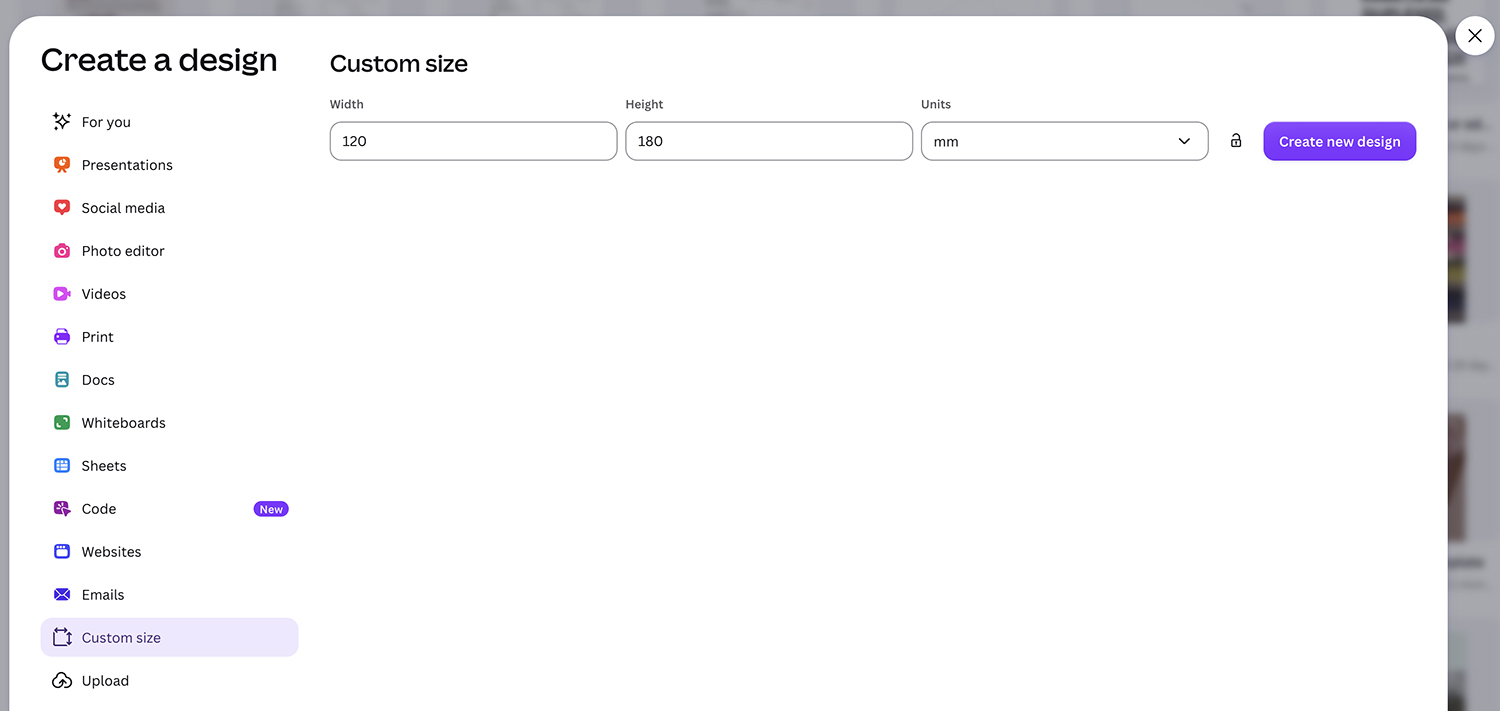

Step 1) Create a 'Custom Size' design

Your design must be the same dimensions of the die cut shape. Make sure the 'Units' measurement selected is mm (milimetres) not px (pixels)! For this example, we're using a 120x180mm Arch.

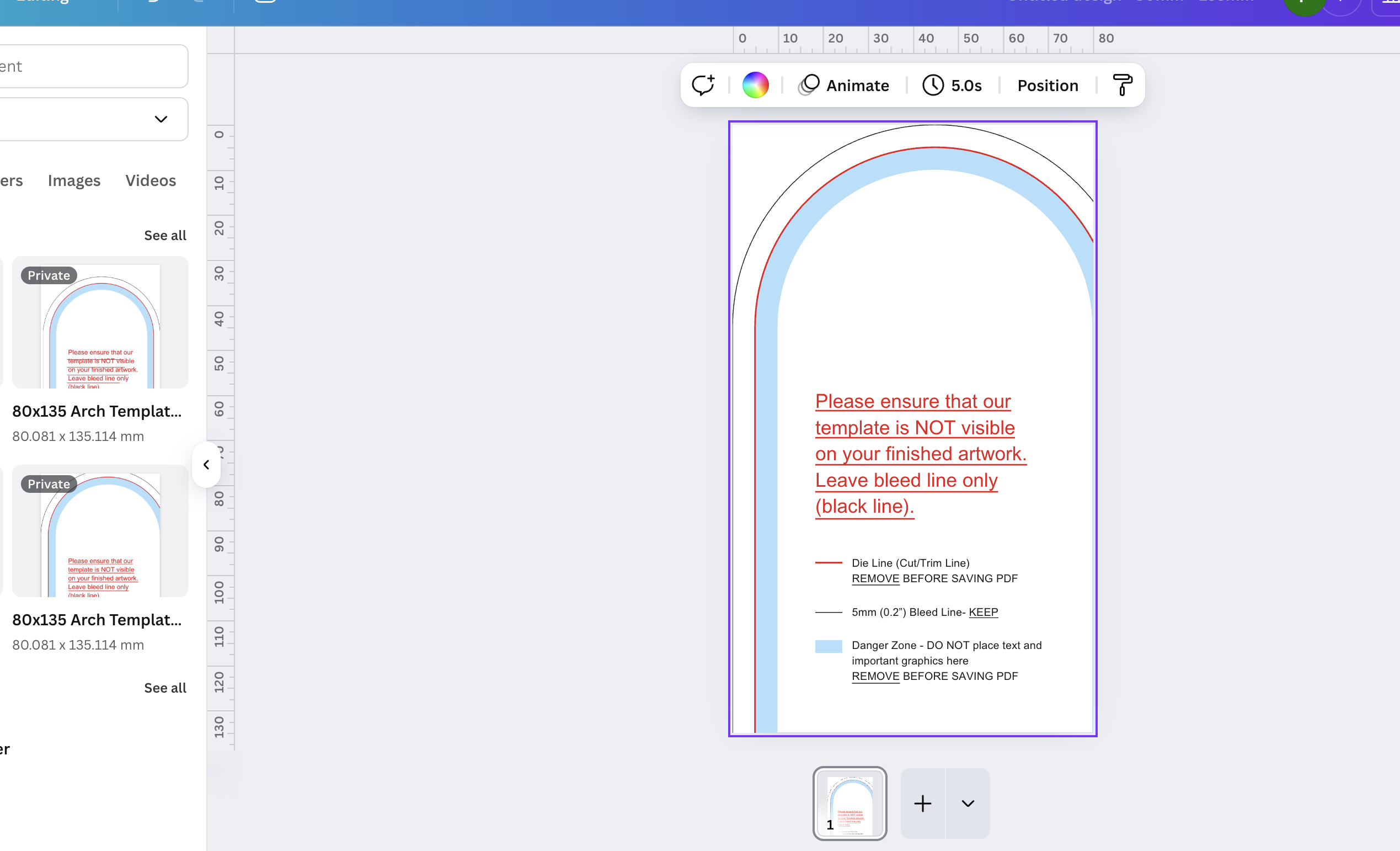

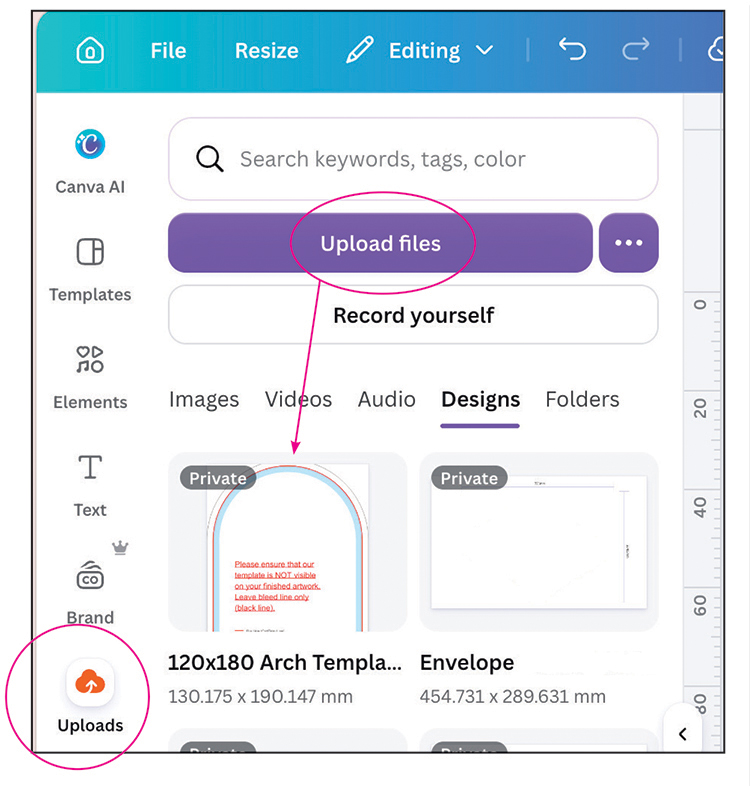

Step 2) Upload our PDF template

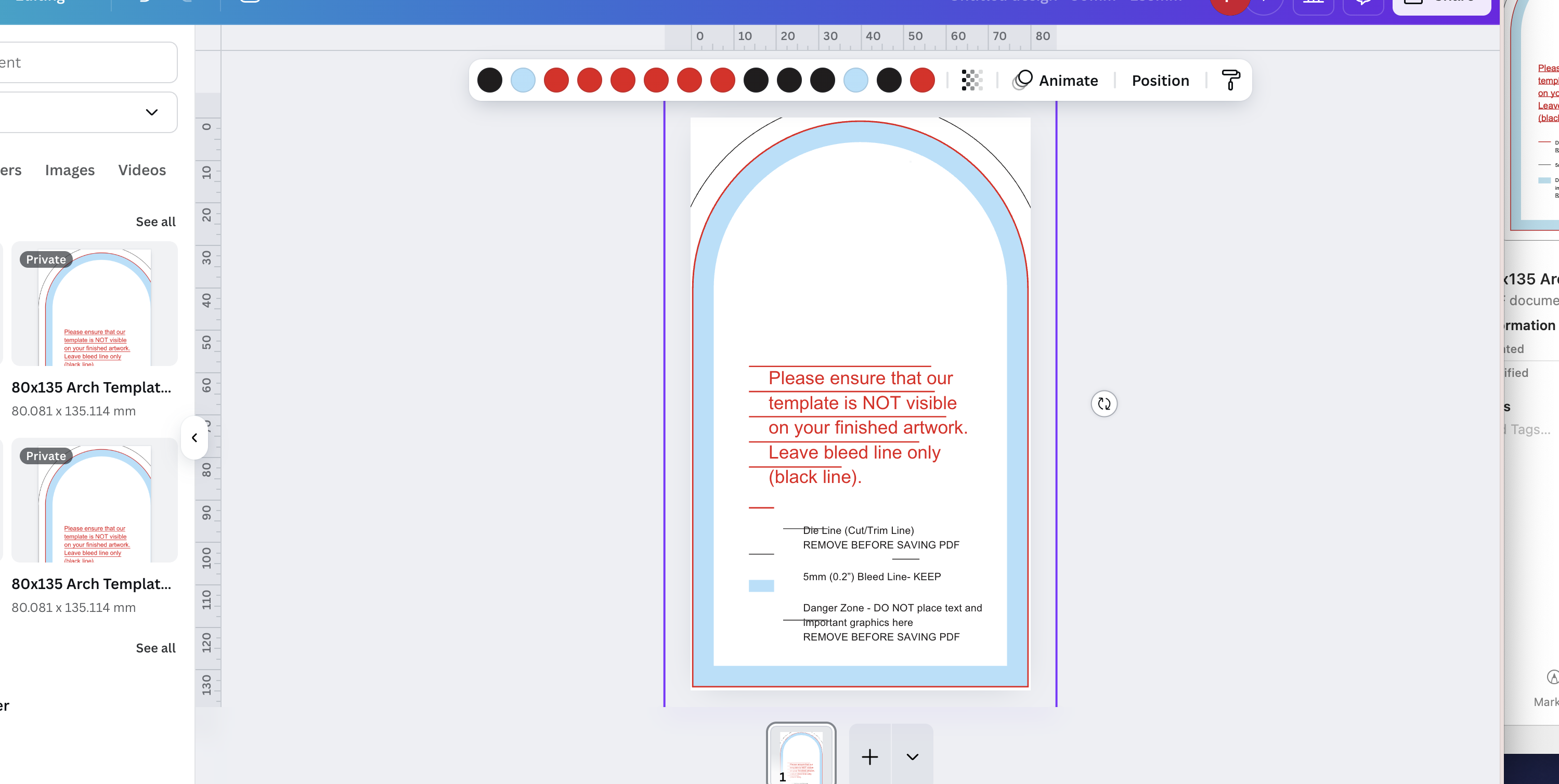

(From the left hand menu). Click on the uploaded file and it will appear on your page. The template appear smaller than the required dimensions.

Use the 'align to page' tool (off the 'more •••') to centre your artwork horizontally and vertically on the page.

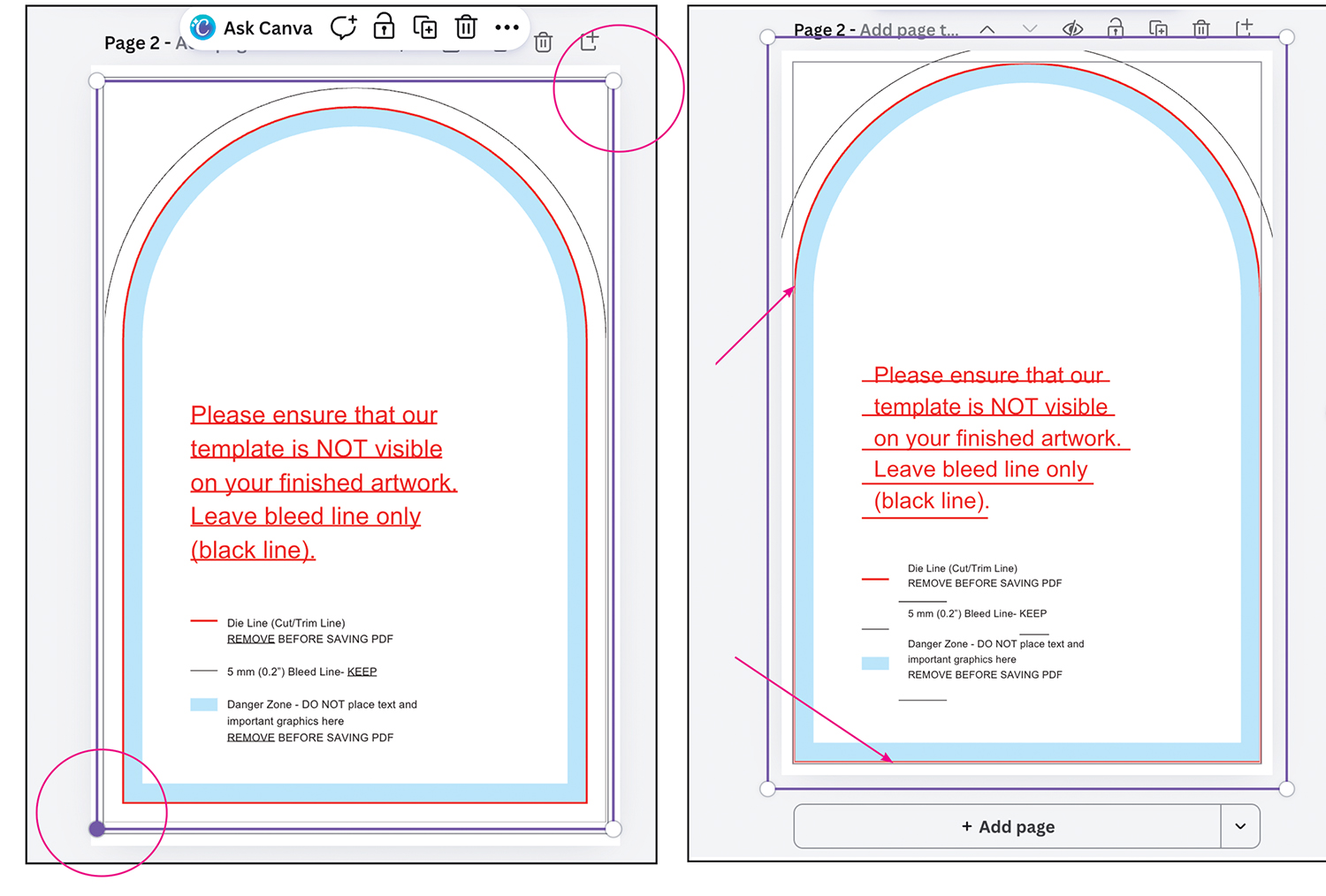

Step 3) Adjust to fit

Drag the corners of the template image until the red trim line meets the edge of your page (right hand image). DON'T DISTORT THE SHAPE.

Adjust template.jpg

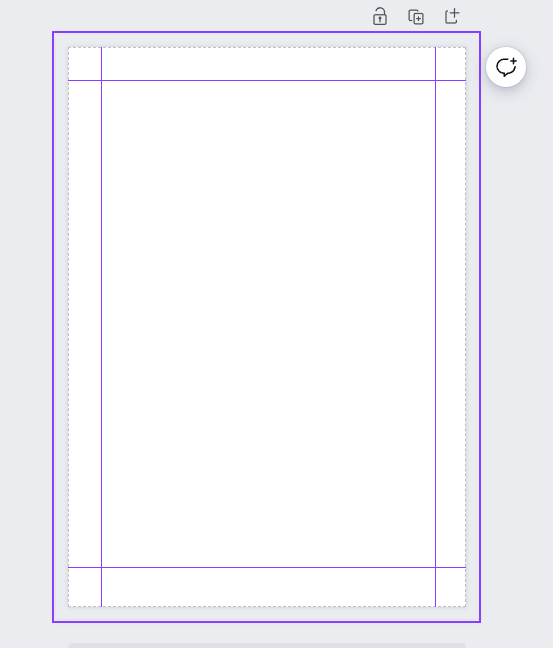

Step 4) Use page guides (optional)

Drag horizontal and vertical guides onto your page so you can see where the red edges of the die cut are (or folds, scores and tabs if you're using a pocket template).

The black line is the bleed line - don't worry that it's not on the page, this is correct.
The red line shows where your printed design will be cut into the die cut shape.

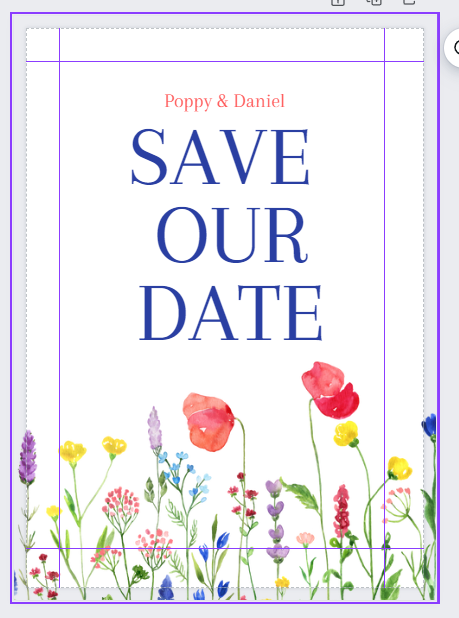

The blue area is the 'safe zone' 5mm from the edge of the artwork. Make sure any important text or design elements are inside of the blue area (the main white section).

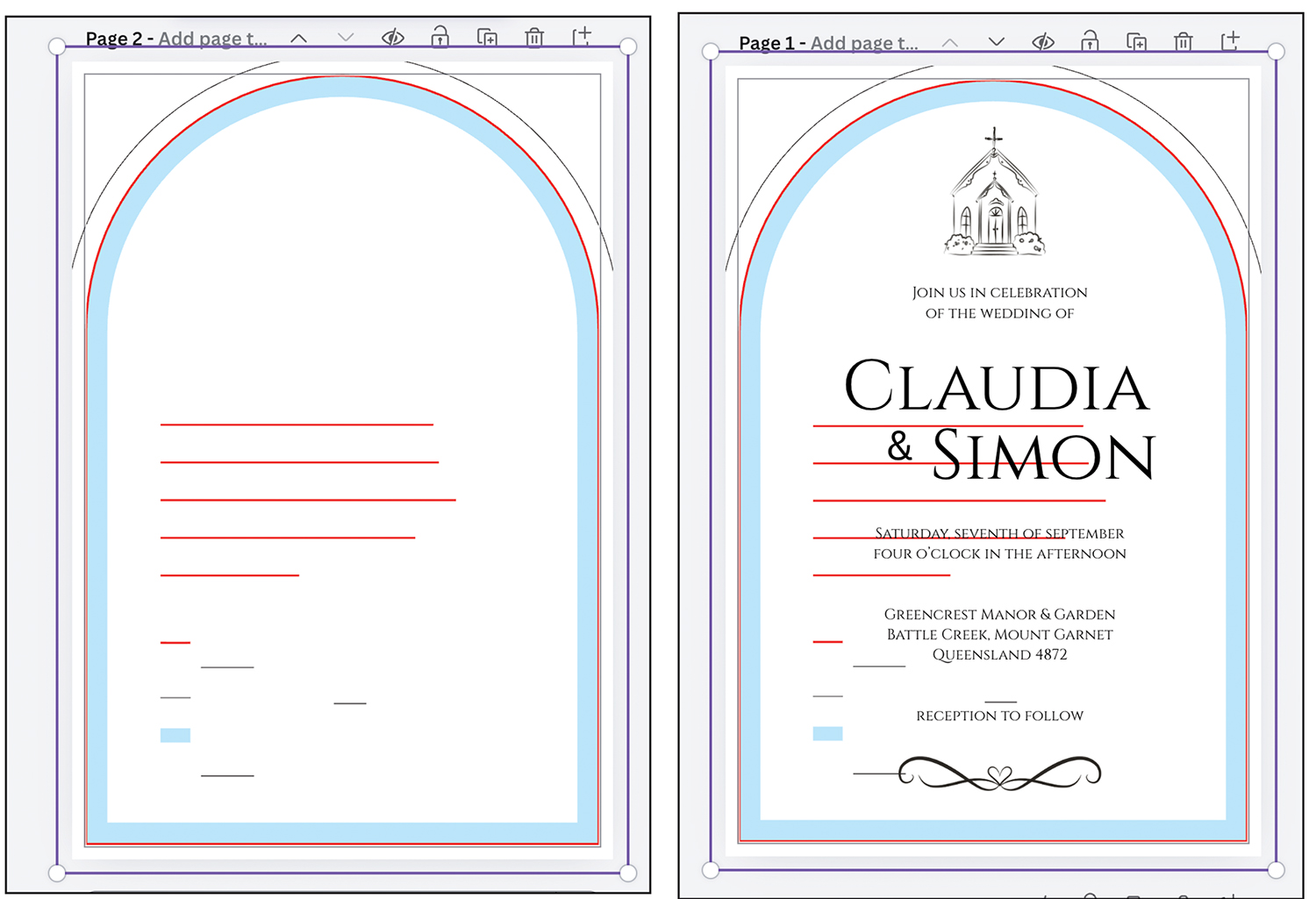

remove and design.jpg You can delete the text off our template from your document. If you're using a curved shape like the Arch, Double Arch, Half Arch or Pebble, you'll need to see the template in position to help you design.
